Micca OoO Bookshelf and Center Channel Speaker
Build a great sound system for listening to music or watching movies even when space is limited! The compact Micca OoO speaker sounds much larger than it looks, giving listeners a fully immersive experience with its dynamic and extended sound signature. Its slim shape can be used horizontally as a center channel speaker, vertically as bookshelf speakers, or use with optional wall mounting brackets as surround sound speakers. At under 4 inches tall when laid down, the Micca OoO will fit where other speakers won’t. This flexibility allows a sound system to be built gradually using one or more units of the Micca OoO, with the ability to move the OoO to different speaker locations in a surround sound setup as needed.
Compact, affordable, sounds good!
Build a great sound system for listening to music or watching movies even when space is limited! The compact Micca OoO speaker sounds much larger than it looks, giving listeners a fully immersive experience with its dynamic and extended sound signature. Its slim shape can be used horizontally as a center channel speaker, vertically as bookshelf speakers, or use with optional wall mounting brackets as surround sound speakers. At under 4 inches tall when laid down, the Micca OoO will fit where other speakers won’t. This flexibility allows a sound system to be built gradually using one or more units of the Micca OoO, with the ability to move the OoO to different speaker locations in a surround sound setup as needed.
Please note that the Micca OoO is a passive speaker and requires an amplifier or receiver to play sound. It cannot play sound directly from a turntable, phone, or TV without an amplifier.
An amplifier is required and not included.
Speaker wire is required and not included.
The OoO’s versatility is the result of its neutral sound signature, characterized by a smooth and even tonal balance throughout its output range. Designed to be accurate and transparent, the OoO renders an expansive and well focused soundstage by minimizing unwanted dispersion. Despite its compact size, the OoO delivers punchy bass response that is satisfying enough to use on its own, but should be paired with a subwoofer for especially demanding music or movie soundtracks.

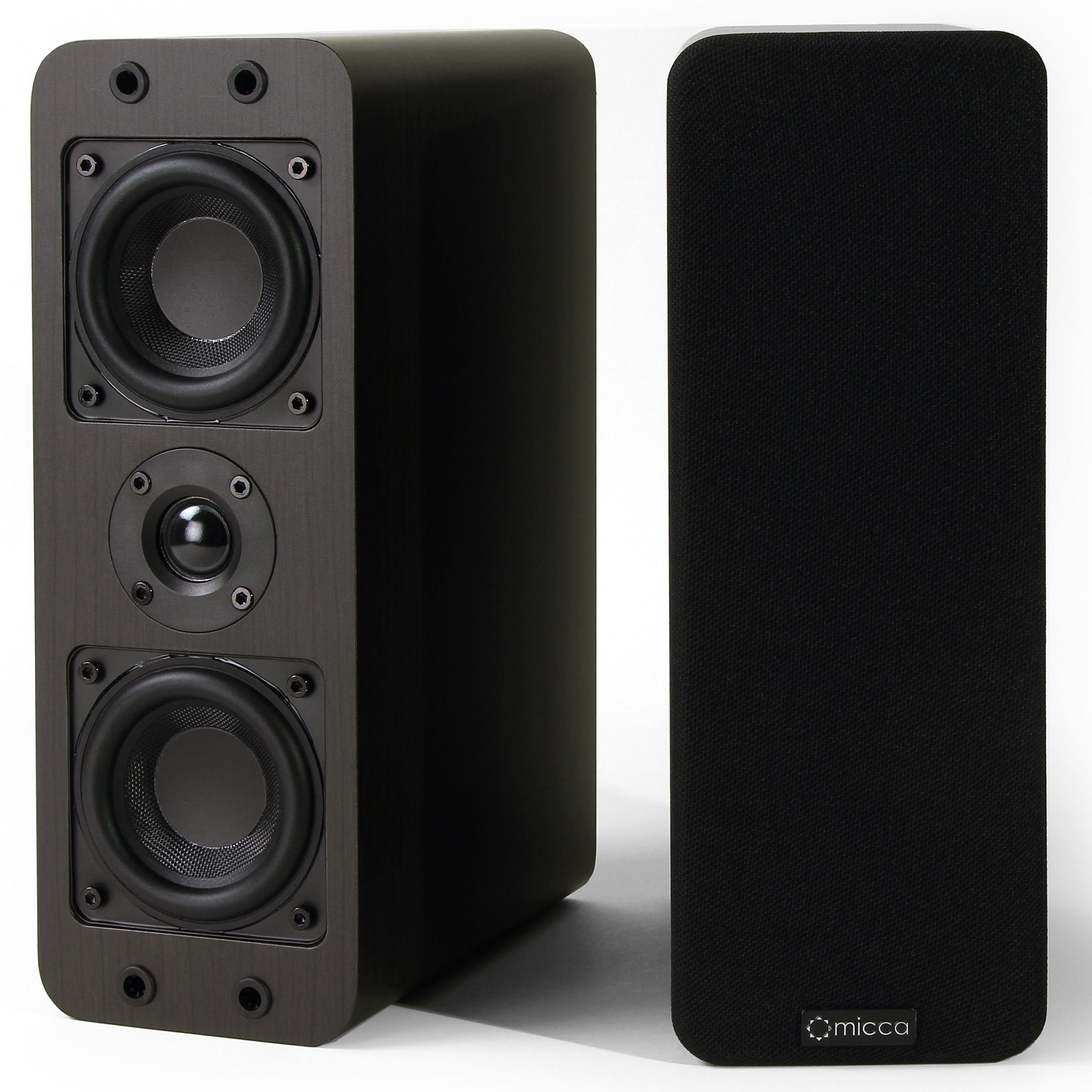

Each OoO speaker holds two 3-inch square frame woofers in a ported enclosure, achieving usable bass extension down to 60Hz. The woofer’s woven kevlar diaphragm has been carefully designed to produce little midrange distortion and a naturally steep high frequency roll-off. The tweeter is based on Micca’s popular 0.75-inch silk dome design, using a high efficiency neodymium magnet and small diameter bezel for tight driver spacing.

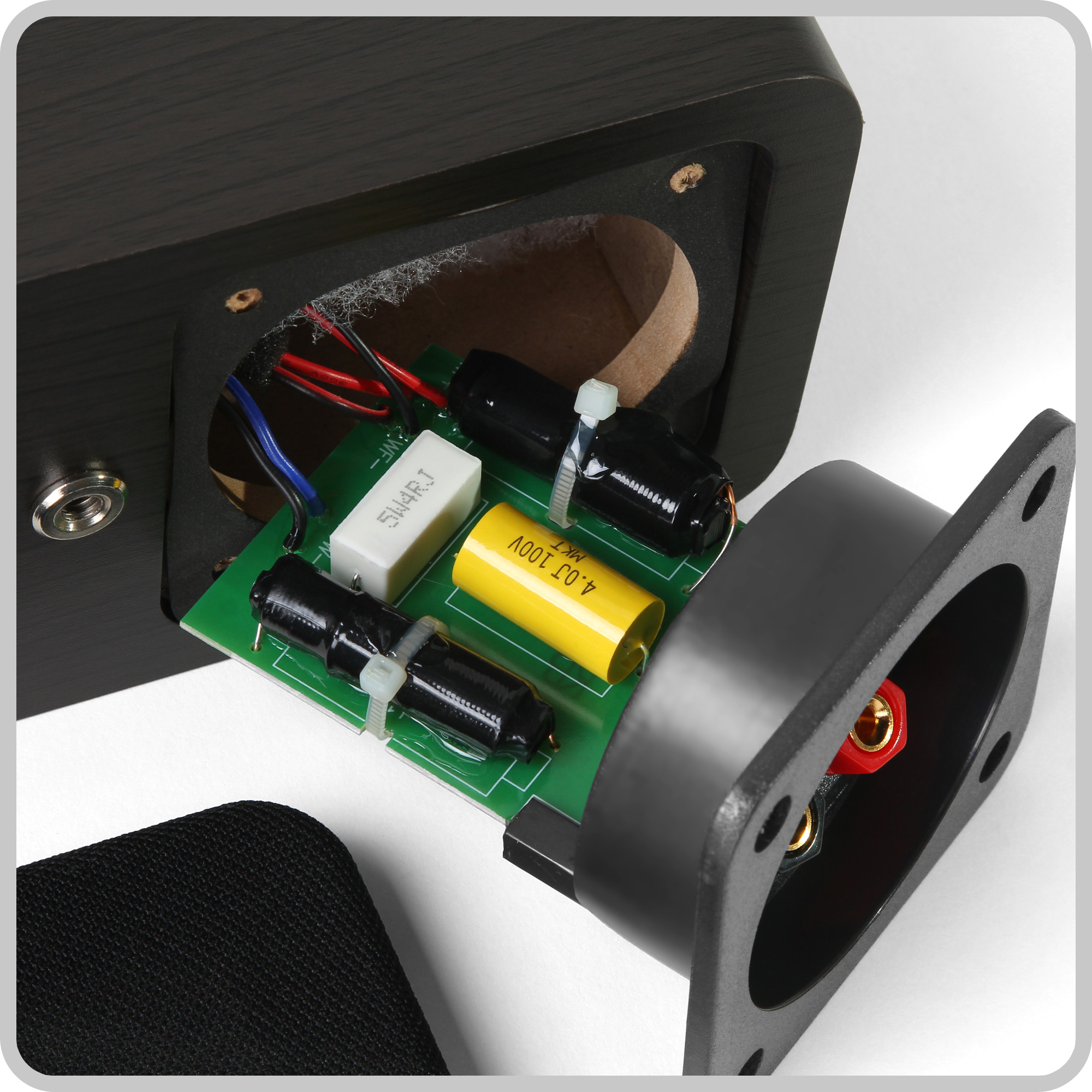

A relatively simple yet effective crossover handles the frequency transition between the drivers. A 6dB/Octave low-pass circuit is used on the woofers while a 12dB/Octave high-pass circuit with level matching is used on the tweeter. The crossover slopes and points were carefully chosen to mesh with the drivers’ natural characteristics to produce a flat and coherent final acoustic response. The OoO sound best with its cloth grill in place.
Wall Mount Compatibility
The OoO can be used with wall mounts that have 1/4” 20 thread size and rated for 10 pound or higher. Please follow the instructions provided with the wall mount for mounting directions.

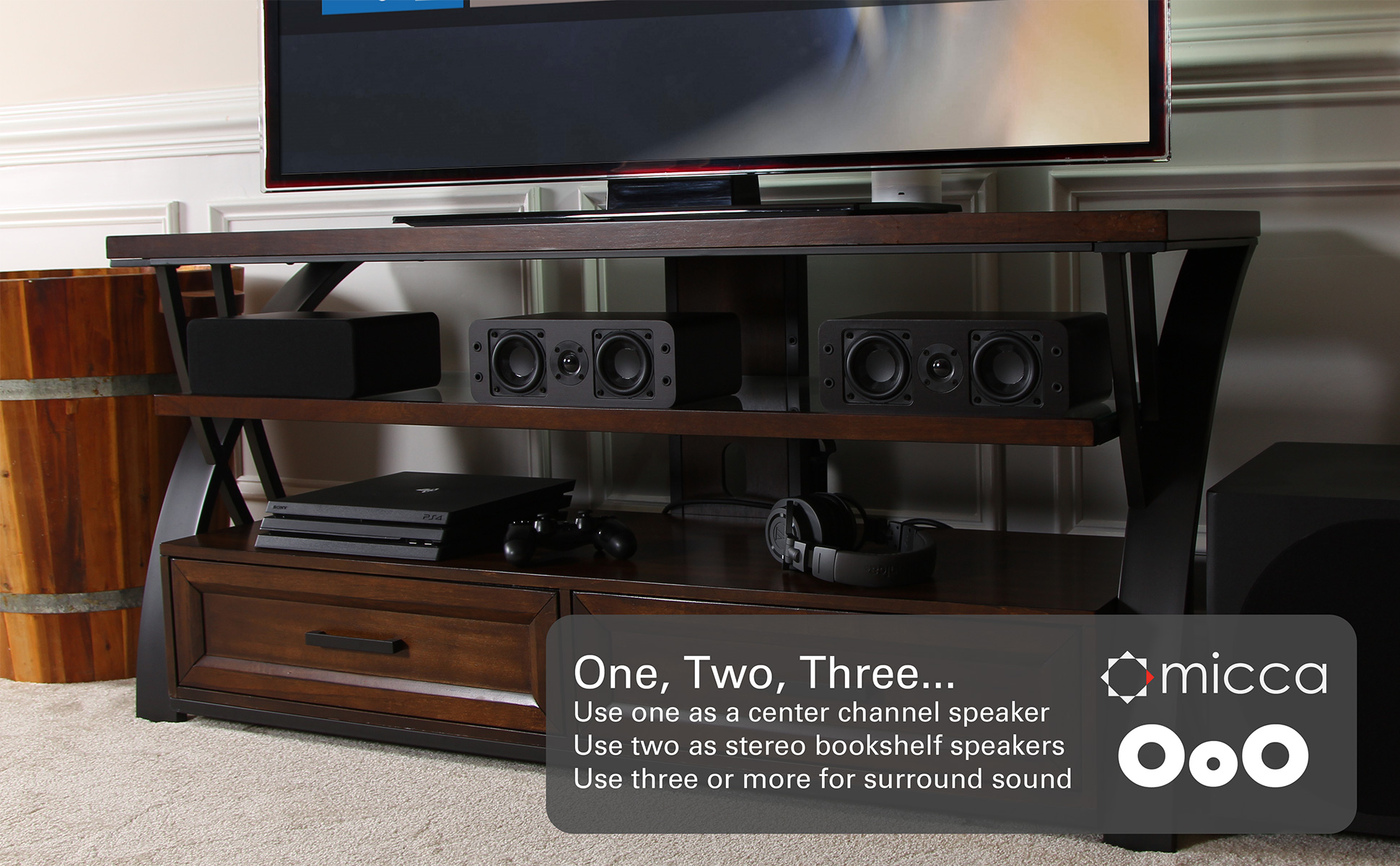

A Truly Versatile Speaker
We invite you try them in your own home with your favorite movie or music. Use the OoO horizontally as a center channel, or vertically for all other applications. They can be placed on a media center shelf, table top, or wall mounted with optional brackets. If they fall short of your expectations, simply return them for a refund.
Specifications
- Woofer: Dual 3” Kevlar Cone with Rubber Surround, Concave Cap, Square Frame
- Tweeter: 0.75” Silk Dome
- Crossover: 6dB/Octave LP, 12dB/Octave HP
- Enclosure: Ported Cabinet
- Freq. Response: 60Hz-20kHz (Typical In-Room)
- Impedance: 4-8 Ohms
- Sensitivity: 83dB 1W/1M
- Power Handling: 15-75 Watts (Each)
- Dimensions: 3.9” (H) x 11” (W) x 6.9” (D)
Feature Highlights:
- The compact Micca OoO speaker sounds much larger than it looks, giving listeners a fully immersive experience with its dynamic and extended sound signature.
- Its slim shape can be used horizontally as a center channel speaker, vertically as bookshelf speakers, or use with optional wall mounting brackets as surround sound speakers.
- Each OoO speaker holds two 3-inch square frame woofers in a ported enclosure, achieving usable bass extension down to 60Hz.
- The tweeter is based on Micca’s popular 0.75-inch silk dome design, using a high efficiency neodymium magnet and small diameter bezel for tight driver spacing.
- A 6dB/Octave low-pass circuit is used on the woofers while a 12dB/Octave high-pass circuit with level matching is used on the tweeter.
Specifications
- Woofer: Dual 3” Kevlar Cone with Rubber Surround, Concave Cap, Square Frame
- Tweeter: 0.75” Silk Dome
- Crossover: 6dB/Octave LP, 12dB/Octave HP
- Enclosure: Ported Cabinet
- Freq. Response: 60Hz-20kHz (Typical In-Room)
- Impedance: 4-8 Ohms
- Sensitivity: 83dB 1W/1M
- Power Handling: 15-75 Watts (Each)
- Dimensions: 3.9” (H) x 11” (W) x 6.9” (D)
What’s Included:
- Micca OoO Speaker
- Rubber feet
- User’s manual
User’s Manual:
Micca OoO User’s Manual (opens in a new tab/window)
